Pumps
Soil conditions being harsh where the salinity (sulphur & chloride) of water is very high, the pumps developed in certain countries are subject to very high wear & tear. Hence StrongPlant researched, designed & manufactured pumps to meet various soil conditions.StrongPlant pumps are built with the highest quality, fuel efficiency & cost effectiveness. The initial draw down being 3 to 4 times higher, the design has a system which can eventually work on less pumps or less horsepower. The pumps are economical & durable since these are used for long duration projects. The pumps are also self-priming.Being technically competent, the type of equipments researched & manufactured by StrongPlant are in line with any advanced technological company or even superior in some areasStrongPlant's success stories for the pumps lie in after-sales service & are always available 24x7 with complete support. Also equipment spare parts are adequately stocked or can be procured within 3 days.
Non Submersible

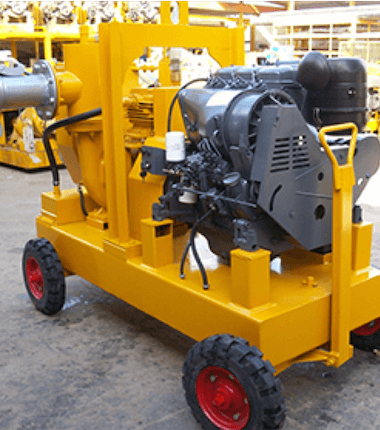

These are electric or diesel powered non-submersible pumps used for wellpoint & French/drain dewatering. They include double acting piston pumps which provide advantages such as low running cost, great reliability, spares & reliable service
The types of non-submersible pumps include
- Turbo-Z reciprocating dewatering pump
- Turbo-Z vacuum assisted centrifugal dewatering pump
- Turbo-Z reciprocating versus Turbo-Z centrifugal dewatering pumps
| Reciprocating | Centrifugal | |
| Dry running | Yes | No |
| Rotation p/min | 380 /64 | 1500 |
| Vacuum | 9.2 mtr | Only self priming |
| Delivery | Max 2.4 bar | Greater heads are possible |
| Capacity | 40-60-90 m3/hr | All capacities |
| Wear Parts | Collars | Seal/ Impeller |
| Low Cost Usage | Yes | No |
| Maintenance | Easy | Specialized |
Submersible
These are electric powered submersible drainage & multistage pumps used for deepwell dewatering. These are designed to withstand the most demanding conditions with increased versatility. Mostly, but not restricted to, 4” or 6” motors & pumps are used based on specifications
Special features of the submersible pumps
- Varied discharge sizes & horsepower range
- High operating efficiency
- Highly durable & hygiene
- Utilizes higher motors to achieve higher heads
- Extremely hardwearing water lubricated bearings
- High pressure rated mechanical seals are isolated to provide superior motor protection
- Can handle upthrust loads
- Rugged cast iron construction
- Pressure relief ports & exclusive oil lifter extend mechanical seal life, eliminating premature wear & failure in high head operations
- Internal thermal motor protection
- Anti-wicking cable entrance
- Specially designed high performance thrust bearing to withstand axial thrust loads
- Can handle upthrust loads
- Tried & trusted
- Highly efficient
- Wide head & flow with numerous models·
- Good sand resistance capacity
- Corrosion free parts for hygiene
- Low wear & tear
- Highly efficient
